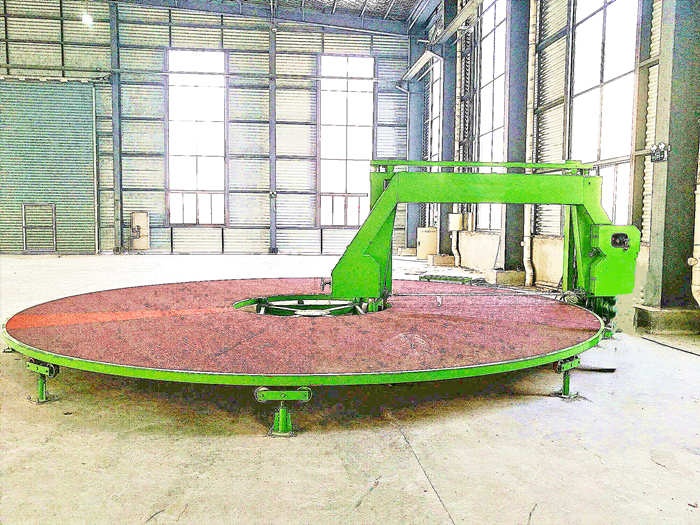

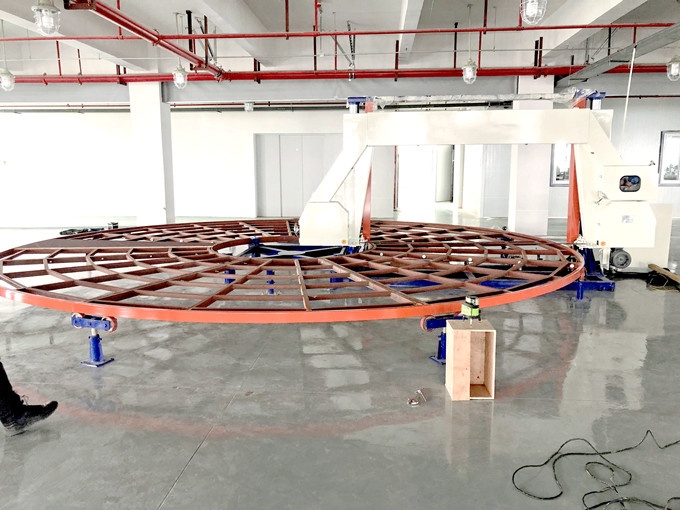

Yppq-60/73/100 sponge disc flat cutting machine

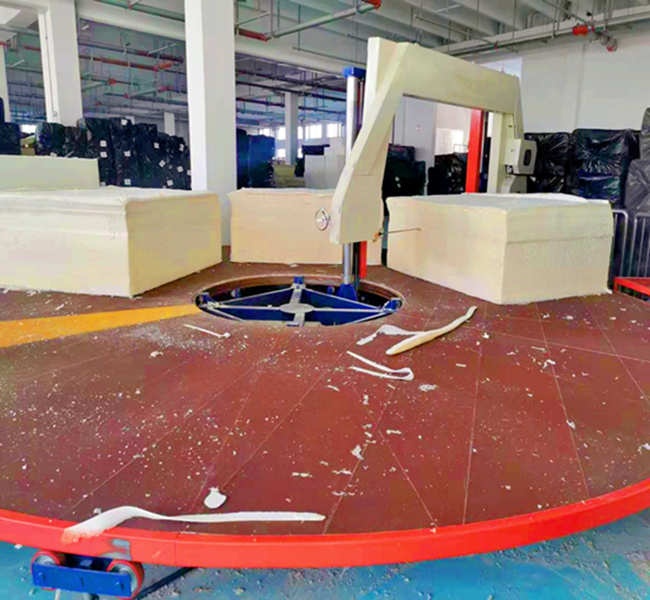

The machine adopts the current advanced imported frequency conversion speed control technology to drive the full digital control cutting precision, high reliability this machine is mainly used for a plurality of block foam on the working platform to cut at the same time, Horizontal slicing work continuous cutting, higher production efficiency, the latest development and development of the country's largest diameter 10.5 meters giant disc flat cutting machine can be continuous cutting W2.15xL4.5 meters square bubble sponge (the machine can be optional table with vacuum suction device)

Model

LC-YP60

LC-YP73

LC-YP100

Cutting foam size

W 1500×L2000×H1200mm(4pcs)

W 1500×L2000×H1200mm(6pcs)

W 1650×L2000mm

Max Cutting foam size

W1500×L2000×H1200mm(4pcs)

W 2150×L3000×H1200mm(3pcs)

H1200mm

Cutting thickness

2-150mm

2-150mm

1-80mm

Worktableturning speed

0-3.5r/min

0-3.0r/min

0-2.0r/min

Blade length

8940mm

10000mm

10240mm

Work table dia(φ)

φ6m

φ7.3m

φ10.5m

Total power

8.04kw

8.84kw

10.24kw

Machine weight

3300kg

3500kg

3800kg

Machine external size(L×W×H)

L6900×W6000×H2400mm

L7900×W7000×H2400mm

L11500×W11000×H2400mm
