PMPQ-1650/2150 foam flat cutting machine PMPQ-1650/2150 foam flat cutting machine

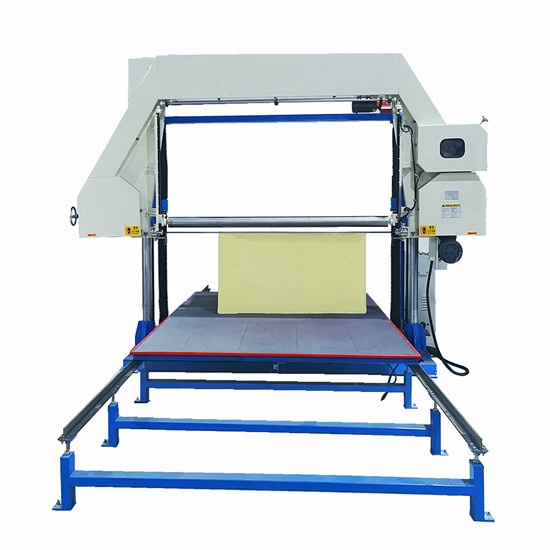

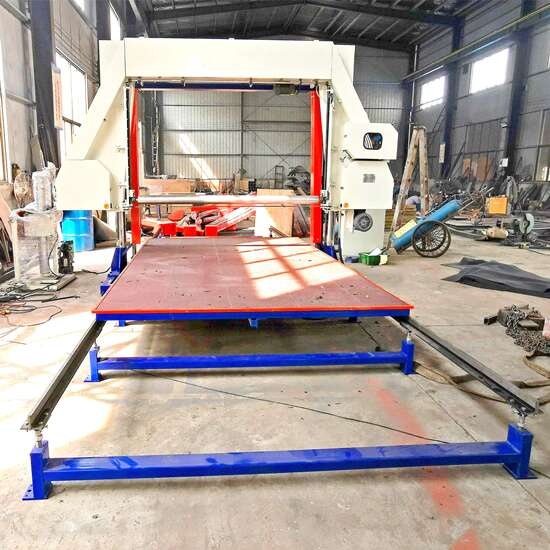

PMPQ-1650/2150 foam flat cutting machine

Foam slicing machine mainly cuts block sponge into thin slices. The workbench adopts automatic digital setting. According to the required thickness, the value is set through the control box, and the workbench automatically cuts back and forth; In order to prevent the cutting sponge from sliding, the roller can be pressurized. Simple operation and accurate cutting. (the workbench can also be equipped with air suction device)

parameter

Model

PMPQ-1650

PMPQ-2150

Cutting foam size

W1650×L2000mm

W2150×L3000mm

Cutting foam height

H1200mm

H1200mm

Cutting speed

0-25m/min

0-25m/min

Cutting thickness

2.0-200mm

2.0-200mm

Blade length

L8500mm

L9480mm

Total power

7.32kw

7.32kw

Machine weight

2000kg

2200kg

Machine external size(L×W×H)

L5800×W3500×H2400

L7800×W4200×H2400mm
