Products >> Crushing equipment series >>

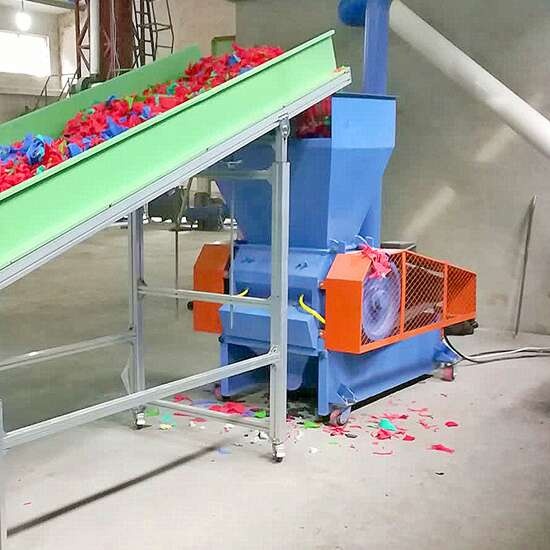

Lc-fs30Knife cut foam mill

Product No.：20211112133916
Online Inquiry

1, equipment introduction: crusher is mainly suitable for crushing plastic, PVC film, plastic and wood, medicinal materials, such as flake or block materials,
2, its compact structure, strong strength, safe and reliable.
3, easy to operate, blade and screen mesh easy to replace, installation and maintenance is simple and easy to learn.
4, the thickness of crushed material can be adjusted by replacing the screen (mesh size)
Two, the structure of the equipment: by the bottom frame, cover seat, cover body, motor, rotor, blade, screen and safety electronic control system and other main parts, which has the characteristics of simple and compact structure, reasonable, firm, easy to operate;

model	The rotor size	Crushing capacity	Outlet location		motor power	Mounting dimension of machine base	Maximum external dimension	total weight
model	（The diameter size）mm	（Broken mesh φ20）kg/hr	d	h	（kw）	LWH（mm）	LWH（mm）	（about /kg）
Ps-600	420*600	600-500	150	215	22	145010501920	162013802320	2600
Ps-1000	540*900	1000-3000	150	225	37	191513702690	212817903045	3500
